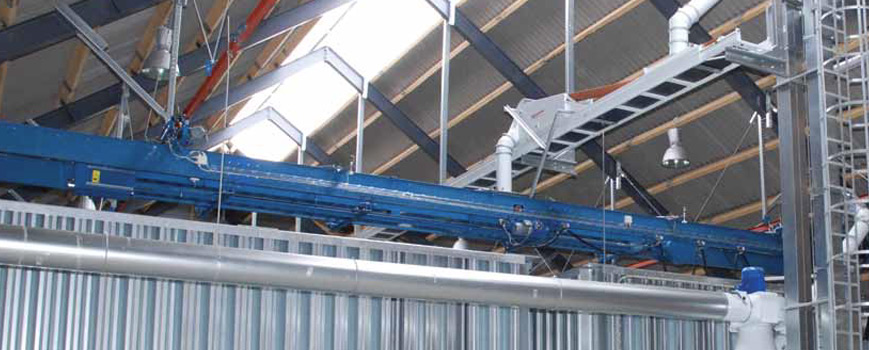

About Kongskilde BCB Belt Conveyors
BCB belt conveyors are used for horizontal or inclined conveying of grain up to 15°. The capacity is up to 80 t/h over 100 m. Capacity is reduced at inclined conveying.
Benefits
- Modular system that provides flexible solutions based on standard components.
- Low energy consumption.
- Self-cleaning conveying.
- Belt conveyor for 60 and 80 t/hour is galvanized for outdoor installation.
- One-way or two-way conveying.
- Infinite discharge points.
Accessories
- Discharge unit, that can be moved lengthwise along the conveyor belt, for discharge on both sides of the belt.
- Inlet that can be run on the conveyor.
- Cover and dust guard below the belt.
- Speed sensor for control of belt speed.
- Multiple intakes on the same belt.
- Scraper to clean the belt.
Technical Information
| BCB 45 | BCB 60 | BCB 80 | |
|---|---|---|---|
| Capacity 700 kg/m3 15% H2O, t/h | 45 | 60 | 80 |
| Belt speed, m/sec | 2.2 | 2.36 | 2.36 |
| Belt dimensions t x w, mm | 3.2 x 300 | 5.5 x 400 | 6 x 500 |
| Material thickness extenders, mm | 1.5 | 2 | 2 |
| Standard extensions, m | 2.0 - 1.0 - 0.33 | 2.0 - 1.0 - 0.5 | |
| Belt support | Steel trough | Low friction rails | Rollers |
| Dimension drive rollers Ø, mm | 175 | 300 | 300 |
| Maximum length, m | 50 | 80 | 100 |
| Transmission | Belt drive gear | Gear motor | Gear Motor |
| Motor power, kW | 2.2 - 4.0 | 2.2 - 2x4.0 | 2.5 - 2x3.0 |
