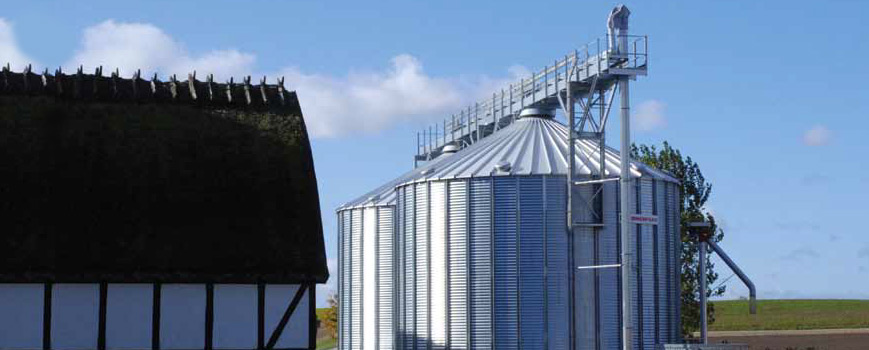

About Kongskilde Chain Elevators

The CFG chain elevator is an excellent solution for conveying capacity requirements of 20-40 t/h. CFG chain elevator can be adjusted for conveying at all inclinations from horizontal to vertical.

Solutions With

  • Trough inlets.
  • Side auger connected to elevator boot.
  • Side auger with motor at elevator boot.
  • Motor in end of side auger.
  • Closed elevator base, inlet on downpipe shaft.
  • 90° angle.
  • 45° angle.

Benefits

  • Flexible modular system which offers many options for conveying solutions.
  • Single motor for horizontal and vertical conveying.
  • Galvanised surfaces for outdoor installation.
  • Gear motor or belt drive.
  • Rain cover for motor.
  • Open auger troughs for grain pit. Closed auger troughs for horizontal conveying.
  • Low inlet height.
  • Standard range of connection pipes.
  • Guy wire system permits up to 15 m between supports indoors and 10 m outdoors for horizontal conveying.

Technical Information

  CFG 20 CFG 40
Capacity 700 kg/m3 15% H2O, t/h 20 40
Material thickness extensions, mm 1.5 1.5
Elevator shaft dimensions w x d, mm 164 x 278 228 x 278
Chain speed, m/sec 1.6 - 1.75 1.6 - 1.75
Standard extensions, m 2.5 - 2.0 - 1.0 - 0.25 - 0.125
Outlet connection OK 160 OK 200
Overall length (maximum vertical + horizontal), m 20 20
Motor power, kW 1.5 - 5.5 1.5 - 5.5
